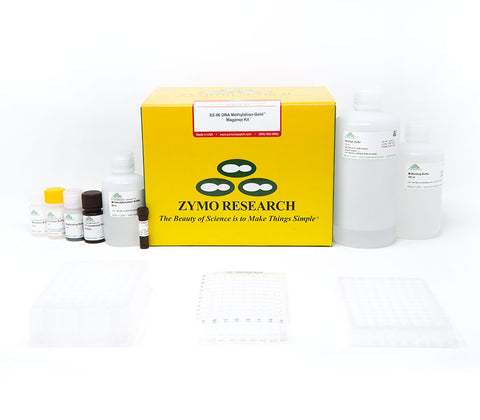

    EZ-96 DNA Methylation-Gold MagPrep


    Cat # Name Size Price Quantity
    D5042 EZ-96 DNA Methylation-Gold MagPrep 4 x 96 Rxns. $767.60
    - +
    D5043 EZ-96 DNA Methylation-Gold MagPrep 8 x 96 Rxns. $1,186.60
    - +

    Highlights

    • Complete, high-throughput bisulfite conversion of GC-rich DNA in less than 3 hours.
    • A coupled heat denaturation/conversion reaction step streamlines the conversion of non-methylated cytosines to uracil.
    • High throughput (96-well), automated desulphonation and recovery of bisulfite-treated DNA. Eluted, ultra-pure DNA is ideal for use in subsequent molecular-based analyses.
    Description & Documents Specifications FAQ Components Citations

    Documents


    Product Description


    The EZ-96 DNA Methylation-Gold MagPrep integrates DNA denaturation and bisulfite conversion processes into one step followed by a magnetic bead-based clean-up for high-throughput methylation analysis. To streamline the procedure, high temperature is used instead of sodium hydroxide to denature DNA. Desulphonation and clean-up of the converted DNA is performed while bound to the MagBinding Beads. The EZ DNA Methylation-Gold kits have been designed to minimize template degradation, loss of DNA during treatment and clean-up, and to provide complete conversion of unmethylated cytosines. Recovered DNA is ideal for downstream analyses, including PCR amplification, endonuclease digestion, sequencing, microarrays, etc.

    For automation scripts and support, email automation@zymoresearch.com

    Documents

    Technical Specifications

    Applications Purified, converted DNA is of high-quality and well-suited for downstream processes, including library preparation for Next-Generation sequencing, PCR amplification, etc.
    Conversion > 99%
    Elution Volume ≥ 25 µl
    Equipment Thermocycler with heated lid, heating element for 96-well plate, magnetic stand.
    Input 500 pg - 2 µg of DNA.
    Processing Time 3 hours
    Recovery > 70%
    Sample Source Purified genomic DNA, endonuclease-digested DNA, linearized plasmid DNA, etc. DNA should be high-quality and RNA-free.
    Supplemental Info

    Resources


    Poor conversion efficiency and low yields can be due to a variety of different experiment-specific conditions. Please contact Technical Support to discuss your specific experimental conditions and further troubleshoot with a product specialist.

    For best results, keep the method of quantification consistent before and after bisulfite treatment:

    • If quantifying with a NanoDrop, use dsDNA settings (50 μg/ml for Ab260 = 1.0) before treatment and use RNA settings (40 μg/ml for Ab260 = 1.0) after treatment.
    • If quantifying with Qubit, use a dsDNA assay before treatment and use a ssDNA assay after treatment.
    Following bisulfite treatment of DNA, nonmethylated cytosine residues are converted into uracil. The recovered DNA is typically A, U, and T-rich. The original base-pairing no longer exists. Instead, the converted DNA is single stranded with limited non-specific base-pairing at room temperature. Therefore, traditional dsDNA methods of quantification will not accurately represent the amount of recovered bisulfite converted DNA.

    Following bisulfite treatment, DNA will be single stranded with limited non-specific base pairing at room temperature. To visualize, run the converted DNA on an agarose gel then chill the gel on ice or in an ice bath for 30 minutes. This will force enough base-pairing to allow intercalation of the ethidium bromide for the DNA to be visible. If using a Bioanalyzer or TapeStation instrument, use RNA kits and reagents to visualize the converted DNA.

    > 50 bp.

    Converted DNA eluted in M-Elution Buffer can generally be stored at -20°C for 1-3 months. If longer term storage is necessary, we recommend storing at or below -70°C if possible. Bisulfite converted DNA is less stable than dsDNA; for best results, minimize freeze-thawing of converted DNA and use as soon as possible for downstream analysis.

    Bisulfite conversion will work regardless of context, so the kits are compatible with genomic DNA derived from plants and other species with high non-CpG methylation levels.

    Leaving the desulphonation buffer on the column longer than recommended will cause more degradation and subsequently result in lower yields.

    ZymoTaq DNA Polymerase has been specifically designed for use in bisulfite amplification reactions. ZymoTaq is available as a stand-alone polymerase (E2001/E2002), PreMix (E2003/E2004), and qPCR PreMix (E2054/E2055).


    Cat # Name Size Price
    D4100-5-8 MagBinding Beads 8 mL $101.20
    D4100-5-16 MagBinding Beads 16 mL $182.60
    D5041-6 M-Elution Buffer 40 ml $37.10
    D5003-1 CT Conversion Reagent (96 Conversions) 1 Bottle $77.90
    D5006-2 M-Dilution Buffer-Gold 7 ml $12.40
    D5007-6 M-Elution Buffer 8 ml $12.40
    D5040-4 M-Wash Buffer 72 ml $84.00
    D5040-5 M-Desulphonation Buffer 80 ml $91.50
    D5040-3 M-Binding Buffer 250 ml $129.80
    D5006-6 M-Dissolving Buffer 1.2 ml $18.50
    C2005 Conversion Plate w/ Cover Foil 2 Plates/Foils $10.30
    C2002 Collection Plate 2 Plates $24.90
    C2003 Elution Plate 2 Plates $21.50
